Description

cd009 gear ratio PMC Motorsport - Adapter Kit Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 CD009PMC Motorsport adapter Adaptor kit swap kit conversion kit clutch kit Toyota JZ 1JZ 2JZ Nissan 350Z Z33 CD009 CD00x 184mm 7. 25" POT An adapter allowing the connection (swap conversion) of a Toyota JZ 1JZ 2JZ with a manual transmission Nissan 350Z. The perfect solution for amateur and professional motorsports. Balanced before shipping Each of our flywheels is thoroughly inspected and balanced before shipping. Replaceable friction surface The worn cast



PMC Motorsport adapter / Adaptor kit / swap kit / conversion kit / clutch kit Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 CD009 CD00x - 184mm / 7.25" POT

An adapter allowing the connection (swap / conversion) of a Toyota JZ 1JZ 2JZ with a manual transmission Nissan 350Z. The perfect solution for amateur and professional motorsports.

Balanced before shipping

Each of our flywheels is thoroughly inspected and balanced before shipping.

Replaceable friction surface

The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer.

Why Choose PMC Motorsport Parts and Adapters?

Professionalism

From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.

Perfect Coaxiality

Our adapters guarantee perfect alignment between the engine and the transmission.

Made in Poland

All production and design work are carried out in Poland.

Expert Assistance and After-Sales Support

The PMC Motorsport team will help you choose the right kit and provide technical support if needed during installation. You can contact us via Facebook, Instagram, or email: [email protected]

Purchase Individual Components

All components of our kits are available for purchase individually. If you need a replacement part, contact us: [email protected]

Fast International Shipping

We ship our products worldwide. EU countries (excluding islands) and the UK have shipping costs calculated automatically. For countries not on the list, we calculate shipping costs after order placement.

VAT 0%

0% VAT for clients with an active European VAT ID (option for B2B clients outside Poland).

Experience

Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.

Certified Quality

Quality is our priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. We are ISO PN-EN ISO 9001:2015 certified.



Engine list :

Toyota JZ

Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version)

Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version)

Manual gearboxes list :

Nissan

Nissan CD001

Nissan 350Z type CD005 32010CD005 32010-CD005

Nissan 350Z type CD006 32010CD006 32010-CD006

Nissan 350Z type CD007 32010CD007 32010-CD007

Nissan 350Z type CD008 32010CD008 32010-CD008

Nissan 350Z / Infiniti G35 type CD009 32010CD009 32010-CD009 6MT



Model : Model series : Date : Part number : ADD :
Nissan 350Z Z33 06/02 -10/02 32010-CD000   1st and 2nd Double Cone Synchro
Nissan 350Z  Z33 10/02 - 02/03 32010-CD003   1st and 2nd Double Cone Synchro
Nissan 350Z  Z33 02/03 - 04/03 32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Nissan 350Z  Z33 04/03 - 07/03 32010-CD006   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Nissan 350Z  Z33 07/03 - 07/04 32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Nissan 350Z  Z33 07/04 - 11/06 32010-CD009 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Nissan 350Z HR  Z33 11/06 - 07/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Nissan 350Z HR  Z33 07/07 - 32010-JK41B 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Nissan 370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Nissan 370Z Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Infiniti G35 DE V35  08/02 - 02/03  32010-CD003 1st and 2nd Double Cone Synchro
Infiniti G35 DE V35  12/02 - 02/03  32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Infiniti G35 DE V35  02/03 - 04/03  32010-CD005 All models incl.  1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Infiniti G35 DE V35  04/03 - 09/03  32010-CD007
Infiniti G35 DE V35  09/03 - 08/04  32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
Infiniti G35 DE V35  11/04 -  32010-CD009  Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Infiniti G35 HR V36 sedan 08/06 - 06/07 32010-JK400 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Infiniti G35 HR V36 sedan 06/07 - 07/08 32010-JK40B  1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Infiniti G37 / Q40 V36 sedan ALL 32010-JK41A    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
Infiniti G37 / Q60 CV36 Coupe ALL 32010-JK41A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear DoubleCone Syncro



CD009 Gear Ratios
1 2 3 4 5 6 R
3.794 2.324 1.624 1.271 1.000 0.794 3.446

Installation Instructions

!!! PMC Motorsport parts are intended for motorsport use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops equipped for this purpose !!!

The custom flywheel is fully recyclable.

! The custom flywheel requires the use of a ring gear / flywheel from the automatic Toyota JZ– not included in the kit!

Brand
PMC MOTORSPORT
Symbol
A-JZ-350-184P
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 2JZ (non VVT-i / VVT-i version)
Manual gearbox (Petrol)
6-speed Nissan CD001
6-speed Nissan CD005 32010CD005
6-speed Nissan CD006 32010CD006
6-speed Nissan CD008 32010CD008
6-speed Nissan CD007 32010CD007
6-speed Nissan CD009 32010CD009
Clutch Set
Set with Clutch
No
Max torque
Adapter kit ONLY 184mm 7,25"
Flywheel Type
Rigid / Single-mass / Single-disc
Diameter of Friction Plate
184mm / 7.25"
Recommended clutch pressure plate
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 xxx Twin disc (POT)
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-013 xxx Triple disc (POT)
Clutch disc
Dedicated to your gearbox - 184mm 7.25"
Spline
23x25-24N
Spline Count
24
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Nissan OE
Starter required (not included)
Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
20mm / 0.78"
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
72Nm 53,1ft·lb + Glue
Replaceable friction surface
Yes

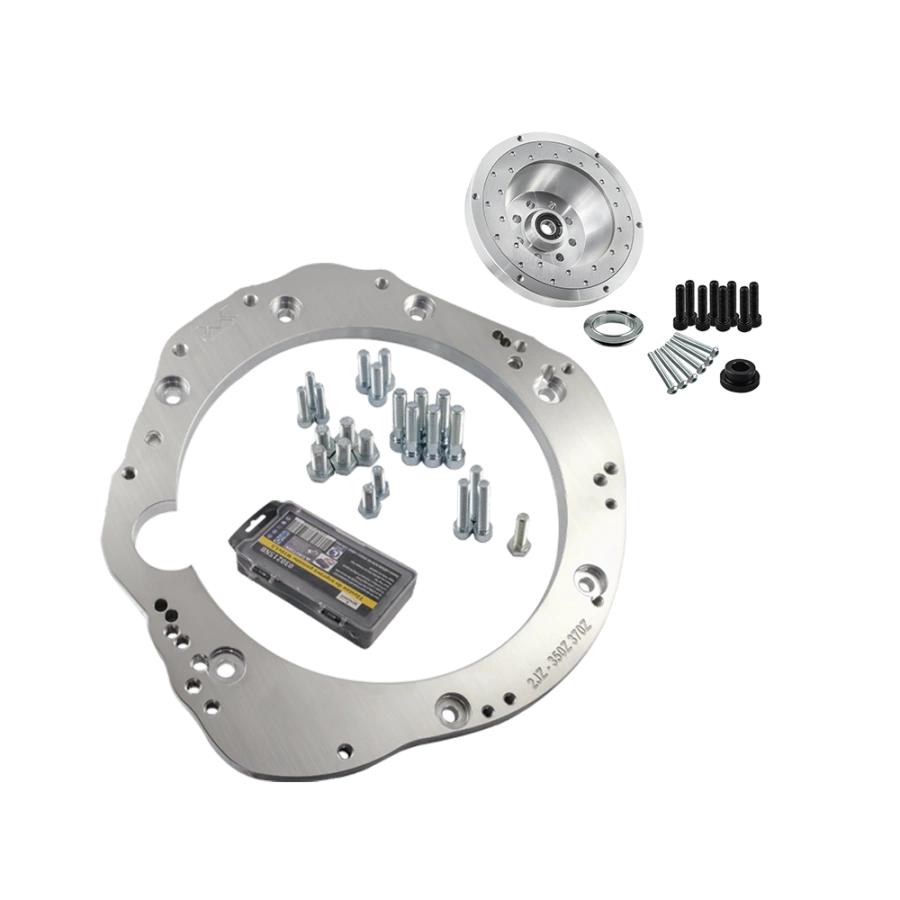

Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Product sales codes included
F0350-JZ
K0350-TP-JZ
EAN
5903707410378
Product code
A-JZ-350-184P
